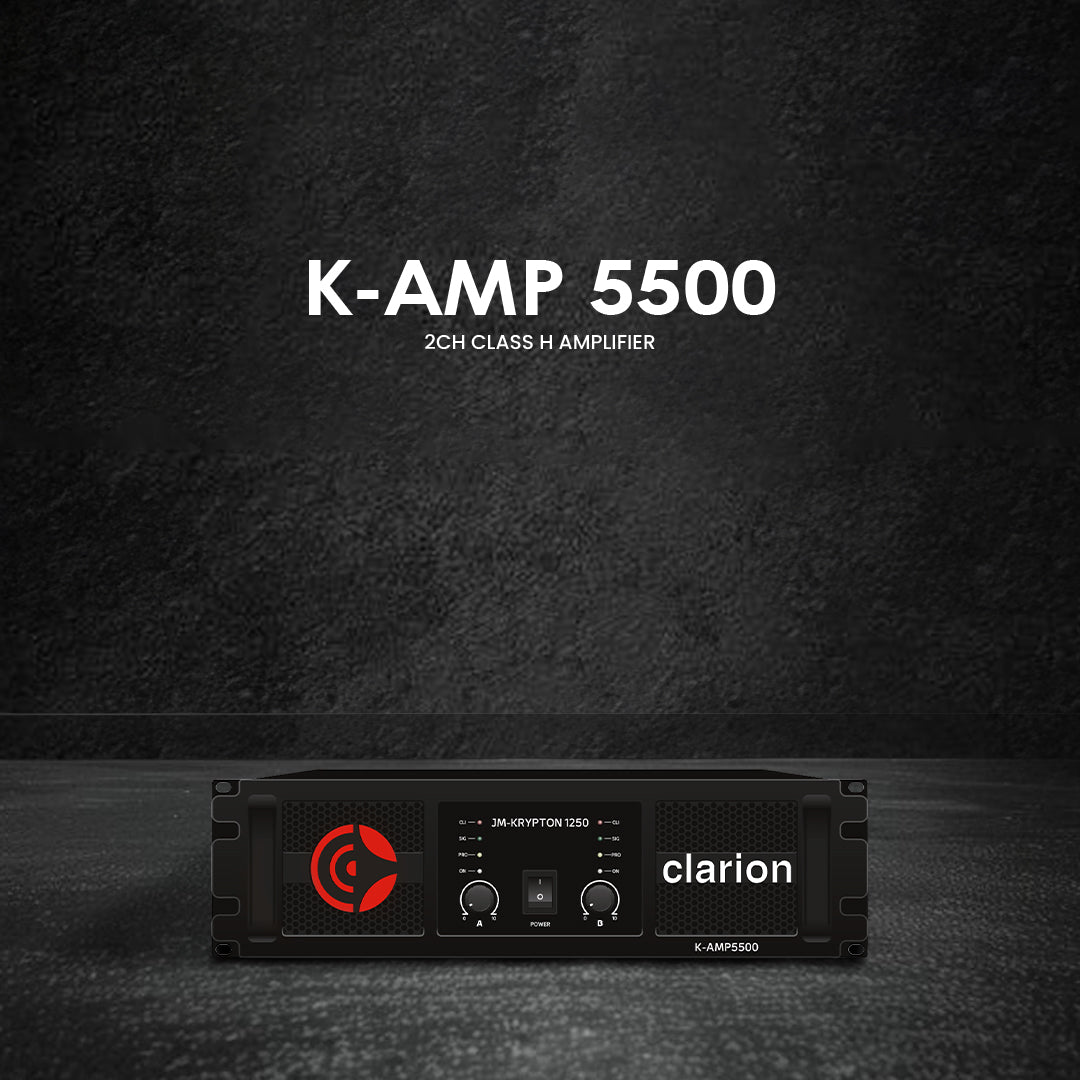

Clarion K AMP 5500, 5500 Watt 2CH Class H Amplifier

The Clarion K AMP 5500 is a high-performance 2-channel Class H amplifier designed for superior audio output and reliability. Delivering up to 5500 watts of power, this amplifier ensures clean and powerful sound reproduction with high damping factors. Ideal for professional DJ setups, live performances, and large venue sound reinforcement.

Features
1. High Power Output: 5500W peak power for dynamic audio performance.
2. Multiple Impedance Support: Compatible with 8Ω, 4Ω, and 2Ω configurations.
3. Bridged Mode: Provides 2400W at 8Ω and 4000W at 4Ω.
4. Low Distortion: THD <0.5% for superior sound clarity.
5. Wide Frequency Response: Covers 20Hz – 20kHz @ 1W.
6. Balanced Input & Output: Equipped with Balanced Female XLR input and Link Out XLR Male.
7. Advanced Cooling System: Dual high-speed fans for optimal heat dissipation.
8. User-Friendly Controls: Independent volume control for each channel with multiple mode selections.
9. Safety Features: Short circuit protection, auto-limited function, overload protection, and AC/DC protection.
10. Customizable Power Supply: Operates at 220V by default, with a 110V option available upon request.

Specifications
1. Channels: 2-channel stereo
2. Power Output:
o 8Ω: 2x1200W
o 4Ω: 2x2000W
o 2Ω: 2x2650W
o Bridged Mode:
 8Ω: 2400W
 4Ω: 4000W
3. Signal-to-Noise Ratio: 99dB (20Hz–20kHz, 8Ω)
4. THD: <0.5% @ 8Ω 1kHz
5. Damping Factor: >900 @ 8Ω
6. Input Impedance: 20KΩ
7. Cooling System: 2 high-efficiency fans
8. Circuit Type: H3 Class
9. Controls: Volume control, Stereo/Parallel/Bridge mode, Bridge Denote, Low Cut
10. Indicators: Active signal, Protection, Clip indicator
11. Protection Features: Short circuit, auto-limiting, overload, AC/DC protection
12. Power Supply: 220V default (110V customizable)

Application of Use
• Professional DJ setups
• Concerts & live performances
• Nightclubs & entertainment venues
• Theaters & auditoriums
• Churches & places of worship
• Large-scale event sound systems
