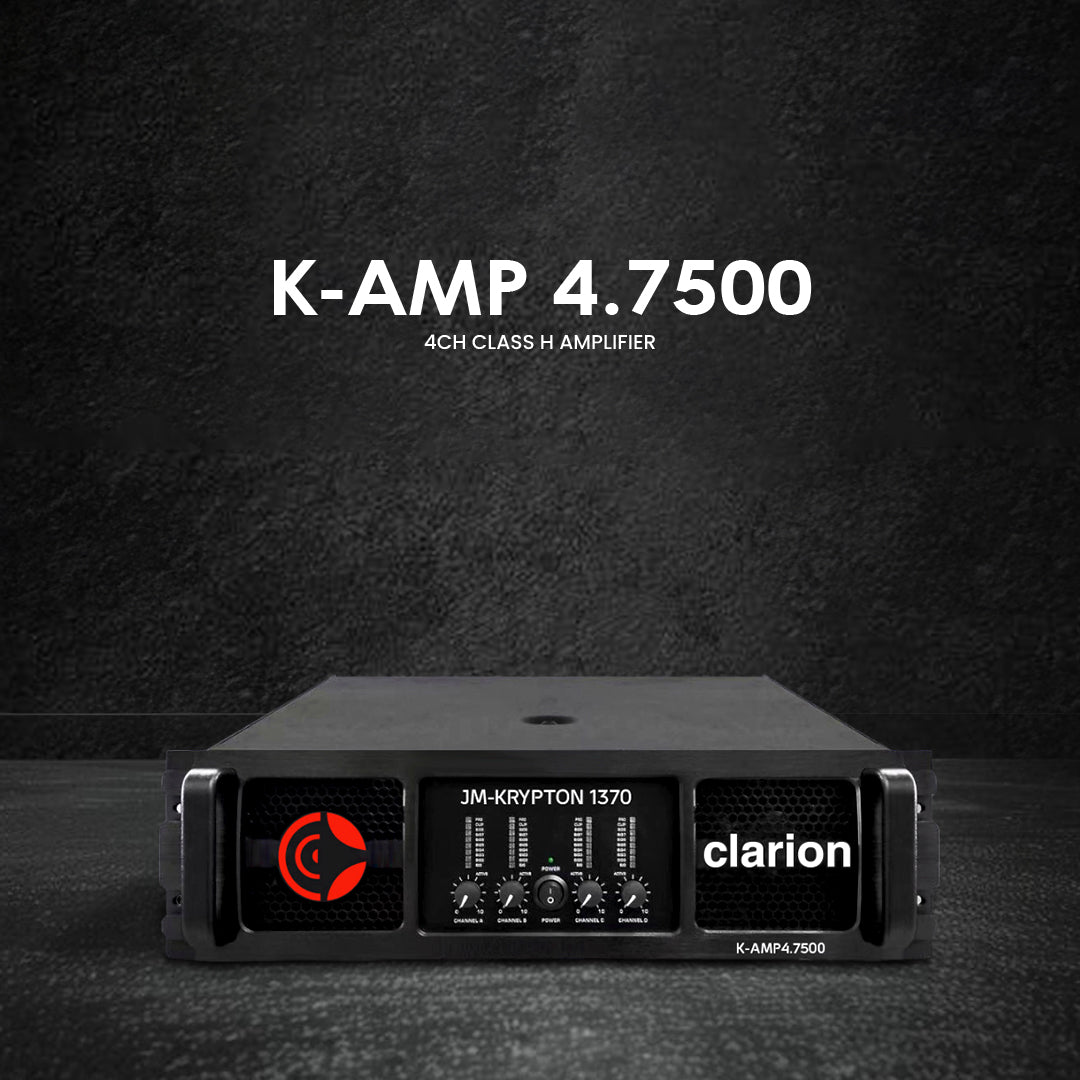

Clarion JM K AMP 4.7500 4 Channel Class H Power Amplifier

The Clarion K Amp 4 7500 is a 4-channel premium power amplifier engineered for audiophile-grade performance in professional sound environments. Built with a high-efficiency Class H topology and 100% pure copper construction, this amplifier delivers consistent, high-wattage output with incredible thermal stability. It is the definitive solution for powering high-end tops and line array systems with precision and power.

II. Features
1. High-efficiency Class H amplifier topology for maximum power with minimal heat.
2. Premium 4-channel configuration for versatile and complex audio setups.
3. Equipped with 32 pairs of high-performance 2SC1943 / 2SA1215 transistors.
4. Massive capacitor bank featuring 16 units of 15000uF/100V for stable current delivery.
5. 100% pure copper construction ensures superior conductivity and durability.
6. High damping factor (>400) for tight, accurate control of speaker drivers.
7. Front-to-rear airflow cooling system prevents overheating during peak performance.
8. Professional connectivity with XLR balanced inputs and NL4 Speakon outputs.

III. Specifications
1. Amplifier Class: Class H 4-Channel Professional Series.
2. Power Output (Stereo 8Ω): 4 × 800W RMS.
3. Power Output (Stereo 4Ω): 4 × 1360W RMS.
4. Power Output (Bridge 8Ω): 2 × 1600W.
5. Transistor Count: 32 Pairs (Audiophile-grade 2SC1943 / 2SA1215).
6. Transformer: Pure Copper (96V-48V-0V-48V-96V).
7. Voltage Support: 160V to 240V AC, 50/60Hz.
8. Physical Specs: 59 × 57 × 13.7 cm; Net Weight: 24 kg.

IV. Application of Use Optimized for driving professional Stage Tops, high-output Line Arrays, and Full Range Speaker systems in concerts, clubs, and large-scale installations.
