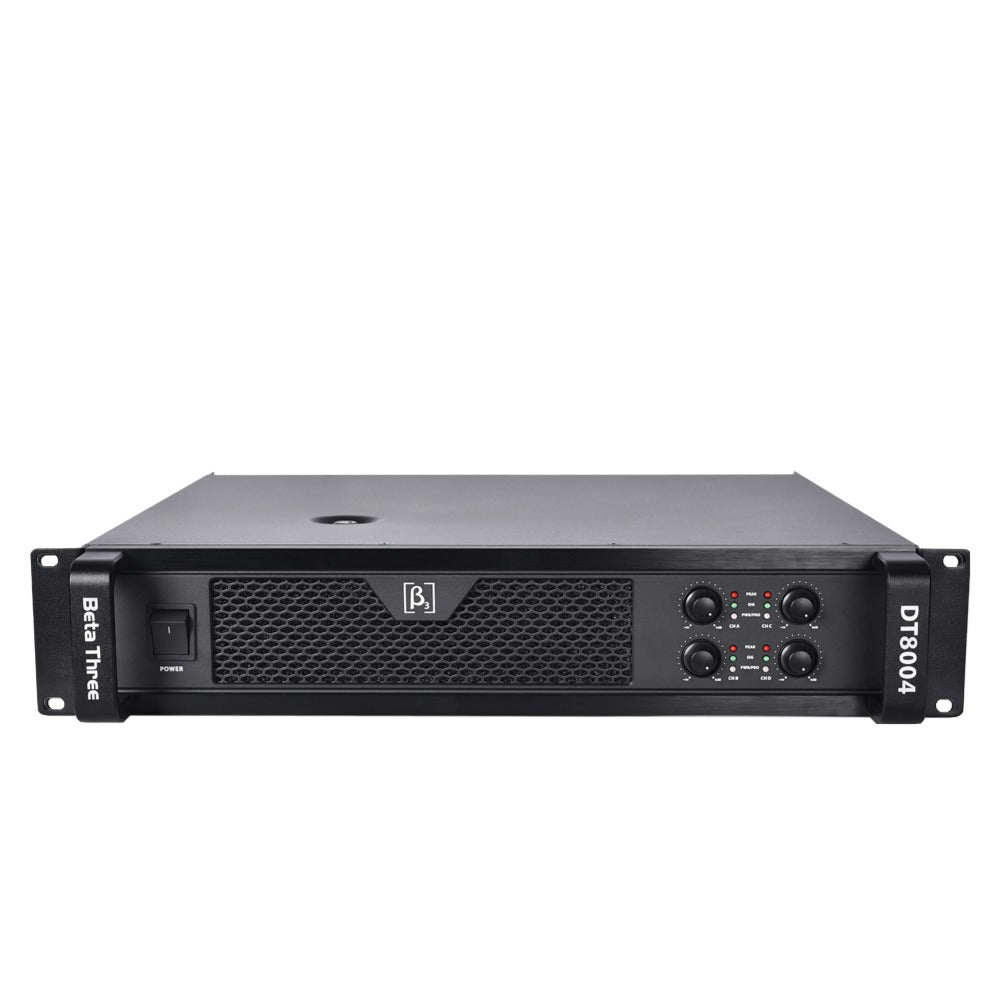

Beta3 DT-8004 4 x 2500 Watt 4-Channel Class D Amplifier

Product Description:
Overview of Product: The Beta3 DT8004 is a high-performance 4-channel Class D amplifier engineered for professional sound reinforcement. With an emphasis on reliability and efficiency, this amplifier features an advanced thermal management system and precise control mechanisms to deliver exceptional audio performance. Its robust design supports a variety of power levels and sensitivities, making it ideal for diverse applications in the professional audio industry.

Features:
1. Versatile Power Levels: Offers 2500W per channel at 4 ohms and 1500W per channel at 8 ohms to suit different sound reinforcement needs.
2. Adjustable Sensitivity: Three selectable input sensitivities (0.775V, 1V, 32dB) for flexible integration with various audio systems.
3. Flexible Input Wiring: Input-cascaded switches allow for easy connection in large-scale setups.
4. Unique Limiting Function: Prevents output distortion with two optional limiting modes, protecting speakers from damage.
5. Efficient Cooling: Features integrated air ducts and dual cooling fans, ensuring reliable operation within a temperature range of -10°C to 40°C.
6. Intuitive Controls: Equipped with an accurate status indicator and independent volume knobs for user-friendly operation.

Specifications:
1. Power Output:
a) 2500W per channel (4 ohms)
b) 1500W per channel (8 ohms)
2. Input Sensitivity: 0.775V/1V/32dB switchable
3. Signal-to-Noise Ratio: >105dB
4. Frequency Response: 20Hz-20kHz ±2dB
5. Total Harmonic Distortion (THD): <0.1% @8Ω, 1kHz
6. Intermodulation Distortion (IMD): <0.5% @8Ω, 60Hz/7kHz 4:1
7. Damping Factor: >500 @8Ω, 100Hz
8. Power Supply: 220-230V ~ 50/60Hz
9. Cooling: Dual cooling fans controlled by temperature
10. Temperature Range: Working temperature -10°C80°C
11. Input Connectors: 4 x XLR
12. Output Connectors: 1 x TRS (link in), 4 x NL4 (power)
13. Power Consumption: 9A
14. Dimensions (W x D x H): 89 x 482 x 380mm (3.5 x 19 x 15in)
15. Package Dimensions (W x D x H): 590 x 550 x 164mm (23.2 x 21.7 x 6.5in)
16. Net Weight: 23.5 kg (51.8 lb)
17. Gross Weight: 26 kg (57.3 lb)

Application & Use: The Beta3 DT8004 is designed for professional audio applications requiring reliable, high-power amplification. It is ideal for live sound reinforcement, touring, installations, and other demanding environments where performance and durability are critical.
