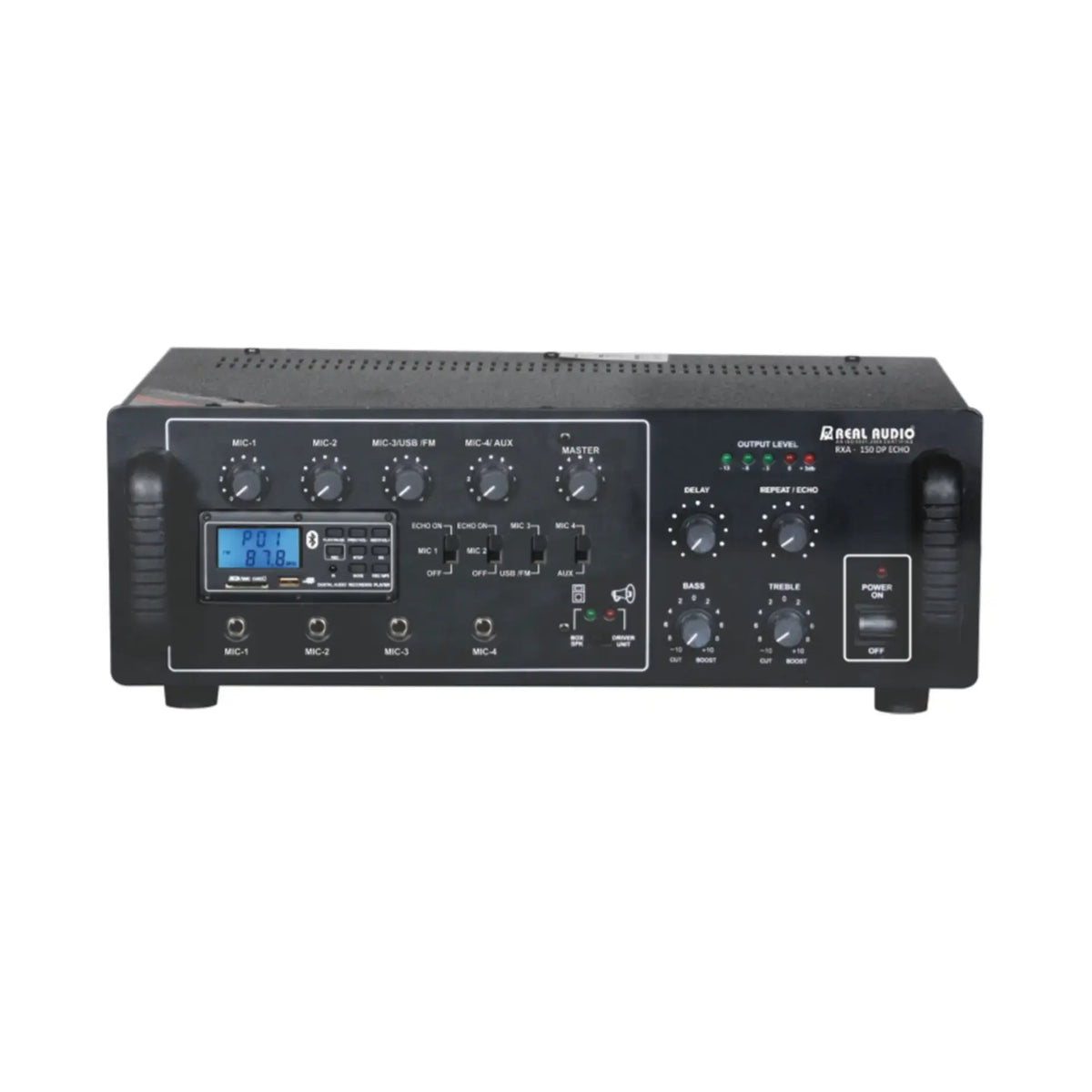

Real Audio RXA - 150DP with Echo (120 Watt)

1. Designed for use in a wide variety of PA applications.

2. RXA-120 DP ECHO is a 125 Watts Mixer Amplifier with 5 Unbalanced Independent Mic inputs and two independent auxiliary inputs with a Built-in digital effect processor for 2 Mic Inputs(Mic-1&2 optional)

3. RXA-120 DP ECHO has built-in MP3 Playback facility with BLUETOOTH and MP3 USB RECORDING

4. RXA-120DP ECHO has a Preamp output for recording the program, a Line output for connecting to a Booster Amplifier and a Line input for connecting to an external PA audio mixer.

5. Box Speaker/ Driver unit selector switch has been provided for protecting the Driver Unit's diaphragm from unwanted low frequencies. Since Box speakers can reproduce the full spectrum of audio frequencies, the switch should be positioned on the Driver Unit side when Driver Units, horns and Column speakers are connected.

6. Circuit protector Device has provided which safeguards the amplifier against overload and short circuits.

7. provision for the automatic changeover from AC to Battery Operation ensuring continuity of the program has been provided

8. Ease of operation, combined with service accessibility has been optimized in the design.

Product Details
MODEL RXA - 120 DP ECHO
Power Output 140W Max, 120W RMS at 10% THD
Input Channel 5x Mic .8mv / 4.7KΩ , 2x Aux 100mv /470kΩ Line in 1V / 50kΩ
Digital Player Mp3 Player, Recorder / FM Radio with Remote control USB / SD Card & MMC Card Reader with Bluetooth
Frequency Response 50-15000Hz ± 3dB
Tone Control Bass ± 10dB at 100Hz, Treble ± 10dB at 10KHz
Echo Delay & Repeat control for echo (Mic 1 & Mic 2)
Out Put Line Out 1V / 1KΩ, Preout 200mV / 600Ω
Output Regulation ≤ 2 dB, no load to full load at 1kHz
Signal to Noise Ratio 60dB
Speaker Outputs 4Ω, 8Ω, (for direct connecon) 70 & 100V Line (for use with LMT )
Power Supply 230V AC, DC 12V (12x1 Car Baery)
Power Consumption AC 300VA DC 2A

2 Year Manufacturing Warranty & Lifetime Transformer Warranty
